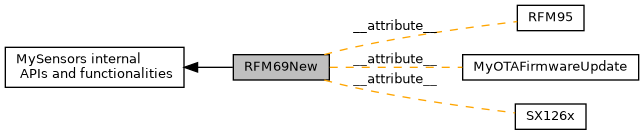

Collaboration diagram for RFM69New:

Detailed Description

API declaration for RFM69.

RFM69 driver-related log messages, format: [!]SYSTEM:[SUB SYSTEM:]MESSAGE

[!] Exclamation mark is prepended in case of error

E	SYS	SUB	Message	Comment
	RFM69	INIT		Initialise RFM69 radio
	RFM69	INIT	PIN,CS=%d,IQP=%d,IQN=%d[,RST=%d]	Pin configuration: chip select (CS), IRQ pin (IQP), IRQ number (IQN), Reset (RST)
	RFM69	INIT	HWV=%d	HW version, see datasheet chapter 9
!	RFM69	INIT	SANCHK FAIL	Sanity check failed, check wiring or replace module
	RFM69	PTX	NO ADJ	TX power level, no adjustment
	RFM69	PTX	LEVEL=%d dbM	TX power level, set to (LEVEL) dBm
	RFM69	SAC	SEND ACK,TO=%d,RSSI=%d	ACK sent to (TO), RSSI of incoming message (RSSI)
	RFM69	ATC	ADJ TXL,cR=%d,tR=%d..%d,TXL=%d	Adjust TX level, current RSSI (cR), target RSSI range (tR), TX level (TXL)
	RFM69	SWR	SEND,TO=%d,SEQ=%d,RETRY=%d	Send to (TO), sequence number (SWQ), retry if no ACK received (RETRY)
	RFM69	SWR	ACK,FROM=%d,SEQ=%d,RSSI=%d	ACK received from (FROM), sequence nr (SEQ), ACK RSSI (RSSI)
!	RFM69	SWR	NACK	Message sent, no ACK received
!	RFM69	SWR	NOIRQ	Interrupt from IRQ pin not received after message was sent
	RFM69	SPP	PCT=%d,TX LEVEL=%d	Set TX level, input TX percent (PCT)
	RFM69	RSL		Radio in sleep mode
	RFM69	RSB		Radio in standby mode
	RFM69	RRX		Radio in receive mode
	RFM69	RTX		Radio in transmit mode
	RFM69	RSY		Radio in synth mode
	RFM69	PWD		Power down radio
	RFM69	PWU		Power up radio
	RFM69	DUMP	s	Dump radio registers

Classes
struct	__attribute__
	FW config structure, stored in eeprom. More...

struct	rfm69_internal_t
	RFM69 internal variables. More...

Macros
#define	RFM69_SPI hwSPI
	default SPI

#define	DEFAULT_RFM69_IRQ_PIN (2)
	DEFAULT_RFM69_IRQ_PIN.

#define	DEFAULT_RFM69_CS_PIN (SS)
	DEFAULT_RFM69_CS_PIN.

#define	RFM69_SPI_DATA_ORDER MSBFIRST
	SPI data order.

#define	RFM69_SPI_DATA_MODE SPI_MODE0
	SPI mode.

#define	RFM69_SYNCVALUE1 (0x2D)
	Make this compatible with sync1 byte of RFM12B lib.

#define	RFM69_VERSION_HW
	HW version.

#define	RFM69_MIN_POWER_LEVEL_DBM ((rfm69_powerlevel_t)-2)
	min. power level, -2dBm

#define	RFM69_MAX_POWER_LEVEL_DBM ((rfm69_powerlevel_t)20)
	max. power level, +20dBm

#define	RFM69_FIFO_SIZE (0xFFu)
	Max number of bytes the Rx/Tx FIFO can hold.

#define	RFM69_MAX_PACKET_LEN static_cast<size_t>(0x40u)
	This is the maximum number of bytes that can be carried.

#define	RFM69_ATC_TARGET_RANGE_DBM (2u)
	ATC target range +/- dBm.

#define	RFM69_PACKET_HEADER_VERSION (1u)
	RFM69 packet header version.

#define	RFM69_MIN_PACKET_HEADER_VERSION (1u)
	Minimal RFM69 packet header version.

#define	RFM69_RETRIES (5u)
	Retries in case of failed transmission.

#define	RFM69_RETRY_TIMEOUT_MS (200ul)
	Timeout for ACK, adjustments needed if modem configuration changed (air time different)

#define	RFM69_MODE_READY_TIMEOUT_MS (50ul)
	Timeout for mode ready.

#define	RFM69_ACK_REQUESTED (7u)
	RFM69 header, controlFlag, bit 7.

#define	RFM69_ACK_RECEIVED (6u)
	RFM69 header, controlFlag, bit 6.

#define	RFM69_ACK_RSSI_REPORT (5u)
	RFM69 header, controlFlag, bit 5.

#define	RFM69_BROADCAST_ADDRESS (255u)
	Broadcasting address.

#define	RFM69_TARGET_RSSI_DBM (-75)
	RSSI target.

#define	RFM69_HIGH_POWER_DBM (18u)
	High power threshold, dBm.

#define	MY_RFM69_TX_TIMEOUT_MS (2*1000ul)
	Timeout for packet sent.

#define	MY_RFM69_CSMA_LIMIT_DBM (-95)
	upper RX signal sensitivity threshold in dBm for carrier sense access

#define	MY_RFM69_CSMA_TIMEOUT_MS (500ul)
	CSMA timeout.

#define	RFM69_POWERUP_DELAY_MS (100ul)
	Power up delay, allow VCC to settle, transport to become fully operational.

#define	RFM69_315MHZ (315000000ul)
	RFM69_315MHZ.

#define	RFM69_433MHZ (433920000ul)
	RFM69_433MHZ, center frequency 433.92 MHz.

#define	RFM69_865MHZ (865500000ul)
	RFM69_865MHZ, center frequency 865.5 MHz.

#define	RFM69_868MHZ (868000000ul)
	RFM69_868MHZ.

#define	RFM69_915MHZ (915000000ul)
	RFM69_915MHZ.

#define	RFM69_COURSE_TEMP_COEF (-90)
	puts the temperature reading in the ballpark, user can fine tune the returned value

#define	RFM69_FXOSC (32*1000000ul)
	OSC freq, 32MHz.

#define	RFM69_FSTEP (RFM69_FXOSC / 524288.0f)
	FXOSC / 2^19 = 32MHz / 2^19 (p13 in datasheet)

#define	RFM69_getACKRequested(__value) ((bool)bitRead(__value,RFM69_ACK_REQUESTED))
	getACKRequested

#define	RFM69_setACKRequested(__value, __flag) bitWrite(__value,RFM69_ACK_REQUESTED,__flag)
	setACKRequested

#define	RFM69_getACKReceived(__value) ((bool)bitRead(__value,RFM69_ACK_RECEIVED))
	getACKReceived

#define	RFM69_setACKReceived(__value, __flag) bitWrite(__value,RFM69_ACK_RECEIVED,__flag)
	setACKReceived

#define	RFM69_setACKRSSIReport(__value, __flag) bitWrite(__value,RFM69_ACK_RSSI_REPORT,__flag)
	setACKRSSIReport

#define	RFM69_getACKRSSIReport(__value) ((bool)bitRead(__value,RFM69_ACK_RSSI_REPORT))
	getACKRSSIReport

#define	RFM69_READ_REGISTER (0x7Fu)
	reading register

#define	RFM69_WRITE_REGISTER (0x80u)
	writing register

#define	RFM69_CONFIG_FSK (RFM69_DATAMODUL_DATAMODE_PACKET \| RFM69_DATAMODUL_MODULATIONTYPE_FSK \| RFM69_DATAMODUL_MODULATIONSHAPING_00)
	RFM69_CONFIG_FSK.

#define	RFM69_CONFIG_GFSK (RFM69_DATAMODUL_DATAMODE_PACKET \| RFM69_DATAMODUL_MODULATIONTYPE_FSK \| RFM69_DATAMODUL_MODULATIONSHAPING_10)
	RFM69_CONFIG_GFSK.

#define	RFM69_CONFIG_OOK (RFM69_DATAMODUL_DATAMODE_PACKET \| RFM69_DATAMODUL_MODULATIONTYPE_OOK \| RFM69_DATAMODUL_MODULATIONSHAPING_00)
	RFM69_CONFIG_OOK.

#define	RFM69_CONFIG_NOWHITE (RFM69_PACKET1_FORMAT_VARIABLE \| RFM69_PACKET1_DCFREE_OFF \| RFM69_PACKET1_CRC_ON \| RFM69_PACKET1_CRCAUTOCLEAR_ON \| RFM69_PACKET1_ADRSFILTERING_NODEBROADCAST)
	RFM69_CONFIG_NOWHITE.

#define	RFM69_CONFIG_WHITE (RFM69_PACKET1_FORMAT_VARIABLE \| RFM69_PACKET1_DCFREE_WHITENING \| RFM69_PACKET1_CRC_ON \| RFM69_PACKET1_CRCAUTOCLEAR_ON \| RFM69_PACKET1_ADRSFILTERING_NODEBROADCAST)
	RFM69_CONFIG_WHITE.

#define	RFM69_CONFIG_MANCHESTER (RFM69_PACKET1_FORMAT_VARIABLE \| RFM69_PACKET1_DCFREE_MANCHESTER \| RFM69_PACKET1_CRC_ON \| RFM69_PACKET1_CRCAUTOCLEAR_ON \| RFM69_PACKET1_ADRSFILTERING_NODEBROADCAST)
	RFM69_CONFIG_MANCHESTER.

#define	RFM69_RXBW_111_24_4 (RFM69_RXBW_DCCFREQ_111 \| RFM69_RXBW_MANT_24 \| RFM69_RXBW_EXP_4)
	RFM69_RXBW_111_24_4.

#define	RFM69_RXBW_111_24_3 (RFM69_RXBW_DCCFREQ_111 \| RFM69_RXBW_MANT_24 \| RFM69_RXBW_EXP_3)
	RFM69_RXBW_111_24_3.

#define	RFM69_RXBW_111_24_2 (RFM69_RXBW_DCCFREQ_111 \| RFM69_RXBW_MANT_24 \| RFM69_RXBW_EXP_2)
	RFM69_RXBW_111_24_2.

#define	RFM69_RXBW_111_16_2 (RFM69_RXBW_DCCFREQ_111 \| RFM69_RXBW_MANT_16 \| RFM69_RXBW_EXP_2)
	RFM69_RXBW_111_16_2.

#define	RFM69_RXBW_111_16_1 (RFM69_RXBW_DCCFREQ_111 \| RFM69_RXBW_MANT_16 \| RFM69_RXBW_EXP_1)
	RFM69_RXBW_111_16_1.

#define	RFM69_RXBW_111_16_0 (RFM69_RXBW_DCCFREQ_111 \| RFM69_RXBW_MANT_16 \| RFM69_RXBW_EXP_0)
	RFM69_RXBW_111_16_0.

#define	RFM69_RXBW_010_16_2 (RFM69_RXBW_DCCFREQ_010 \| RFM69_RXBW_MANT_16 \| RFM69_RXBW_EXP_2)
	RFM69_RXBW_010_16_2.

#define	RFM69_FSK_BR2_FD5 RFM69_CONFIG_FSK, RFM69_BITRATEMSB_2000, RFM69_BITRATELSB_2000, RFM69_FDEVMSB_5000, RFM69_FDEVLSB_5000, RFM69_RXBW_111_24_4, RFM69_CONFIG_WHITE
	RFM69_FSK_BR2_FD5.

#define	RFM69_FSK_BR2_4_FD4_8 RFM69_CONFIG_FSK, RFM69_BITRATEMSB_2400, RFM69_BITRATELSB_2400, RFM69_FDEVMSB_4800, RFM69_FDEVLSB_4800, RFM69_RXBW_111_24_4, RFM69_CONFIG_WHITE
	RFM69_FSK_BR2_4_FD4_8.

#define	RFM69_FSK_BR4_8_FD9_6 RFM69_CONFIG_FSK, RFM69_BITRATEMSB_4800, RFM69_BITRATELSB_4800, RFM69_FDEVMSB_9600, RFM69_FDEVLSB_9600, RFM69_RXBW_111_24_4, RFM69_CONFIG_WHITE
	RFM69_FSK_BR4_8_FD9_6.

#define	RFM69_FSK_BR9_6_FD19_2 RFM69_CONFIG_FSK, RFM69_BITRATEMSB_9600, RFM69_BITRATELSB_9600, RFM69_FDEVMSB_19200, RFM69_FDEVLSB_19200, RFM69_RXBW_111_24_4, RFM69_CONFIG_WHITE
	RFM69_FSK_BR9_6_FD19_2.

#define	RFM69_FSK_BR19_2_FD38_4 RFM69_CONFIG_FSK, RFM69_BITRATEMSB_19200, RFM69_BITRATELSB_19200, RFM69_FDEVMSB_38400, RFM69_FDEVLSB_38400, RFM69_RXBW_111_24_3, RFM69_CONFIG_WHITE
	RFM69_FSK_BR19_2_FD38_4.

#define	RFM69_FSK_BR38_4_FD76_8 RFM69_CONFIG_FSK, RFM69_BITRATEMSB_38400, RFM69_BITRATELSB_38400, RFM69_FDEVMSB_76800, RFM69_FDEVLSB_76800, RFM69_RXBW_111_24_2, RFM69_CONFIG_WHITE
	RFM69_FSK_BR38_4_FD76_8.

#define	RFM69_FSK_BR55_5_FD50 RFM69_CONFIG_FSK, RFM69_BITRATEMSB_55555, RFM69_BITRATELSB_55555, RFM69_FDEVMSB_50000, RFM69_FDEVLSB_50000, RFM69_RXBW_111_16_2, RFM69_CONFIG_WHITE
	RFM69_FSK_BR55_5_FD50.

#define	RFM69_FSK_BR57_6_FD120 RFM69_CONFIG_FSK, RFM69_BITRATEMSB_57600, RFM69_BITRATELSB_57600, RFM69_FDEVMSB_120000, RFM69_FDEVLSB_120000, RFM69_RXBW_111_16_1, RFM69_CONFIG_WHITE
	RFM69_FSK_BR57_6_FD120.

#define	RFM69_FSK_BR125_FD125 RFM69_CONFIG_FSK, RFM69_BITRATEMSB_125000, RFM69_BITRATELSB_125000, RFM69_FDEVMSB_125000, RFM69_FDEVLSB_125000, RFM69_RXBW_010_16_2, RFM69_CONFIG_WHITE
	RFM69_FSK_BR125_FD125.

#define	RFM69_FSK_BR250_FD250 RFM69_CONFIG_FSK, RFM69_BITRATEMSB_250000, RFM69_BITRATELSB_250000, RFM69_FDEVMSB_250000, RFM69_FDEVLSB_250000, RFM69_RXBW_111_16_0, RFM69_CONFIG_WHITE
	RFM69_FSK_BR250_FD250.

#define	RFM69_GFSK_BR2_FD5 RFM69_CONFIG_GFSK, RFM69_BITRATEMSB_2000, RFM69_BITRATELSB_2000, RFM69_FDEVMSB_5000, RFM69_FDEVLSB_5000, RFM69_RXBW_111_24_4, RFM69_CONFIG_WHITE
	RFM69_GFSK_BR2_FD5.

#define	RFM69_GFSK_BR2_4_FD4_8 RFM69_CONFIG_GFSK, RFM69_BITRATEMSB_2400, RFM69_BITRATELSB_2400, RFM69_FDEVMSB_4800, RFM69_FDEVLSB_4800, RFM69_RXBW_111_24_4, RFM69_CONFIG_WHITE
	RFM69_GFSK_BR2_4_FD4_8.

#define	RFM69_GFSK_BR4_8_FD9_6 RFM69_CONFIG_GFSK, RFM69_BITRATEMSB_4800, RFM69_BITRATELSB_4800, RFM69_FDEVMSB_9600, RFM69_FDEVLSB_9600, RFM69_RXBW_111_24_4, RFM69_CONFIG_WHITE
	RFM69_GFSK_BR4_8_FD9_6.

#define	RFM69_GFSK_BR9_6_FD19_2 RFM69_CONFIG_GFSK, RFM69_BITRATEMSB_9600, RFM69_BITRATELSB_9600, RFM69_FDEVMSB_19200, RFM69_FDEVLSB_19200, RFM69_RXBW_111_24_4, RFM69_CONFIG_WHITE
	RFM69_GFSK_BR9_6_FD19_2.

#define	RFM69_GFSK_BR19_2_FD38_4 RFM69_CONFIG_GFSK, RFM69_BITRATEMSB_19200, RFM69_BITRATELSB_19200, RFM69_FDEVMSB_38400, RFM69_FDEVLSB_38400, RFM69_RXBW_111_24_3, RFM69_CONFIG_WHITE
	RFM69_GFSK_BR19_2_FD38_4.

#define	RFM69_GFSK_BR38_4_FD76_8 RFM69_CONFIG_GFSK, RFM69_BITRATEMSB_38400, RFM69_BITRATELSB_38400, RFM69_FDEVMSB_76800, RFM69_FDEVLSB_76800, RFM69_RXBW_111_24_2, RFM69_CONFIG_WHITE
	RFM69_GFSK_BR38_4_FD76_8.

#define	RFM69_GFSK_BR55_5_FD50 RFM69_CONFIG_GFSK, RFM69_BITRATEMSB_55555, RFM69_BITRATELSB_55555, RFM69_FDEVMSB_50000, RFM69_FDEVLSB_50000, RFM69_RXBW_111_16_2, RFM69_CONFIG_WHITE
	RFM69_GFSK_BR55_5_FD50.

#define	RFM69_GFSK_BR57_6_FD120 RFM69_CONFIG_GFSK, RFM69_BITRATEMSB_57600, RFM69_BITRATELSB_57600, RFM69_FDEVMSB_120000, RFM69_FDEVLSB_120000, RFM69_RXBW_111_16_1, RFM69_CONFIG_WHITE
	RFM69_GFSK_BR57_6_FD120.

#define	RFM69_GFSK_BR125_FD125 RFM69_CONFIG_GFSK, RFM69_BITRATEMSB_125000, RFM69_BITRATELSB_125000, RFM69_FDEVMSB_125000, RFM69_FDEVLSB_125000, RFM69_RXBW_010_16_2, RFM69_CONFIG_WHITE
	RFM69_GFSK_BR125_FD125.

#define	RFM69_GFSK_BR250_FD250 RFM69_CONFIG_GFSK, RFM69_BITRATEMSB_250000, RFM69_BITRATELSB_250000, RFM69_FDEVMSB_250000, RFM69_FDEVLSB_250000, RFM69_RXBW_111_16_0, RFM69_CONFIG_WHITE
	RFM69_GFSK_BR250_FD250.

#define	RFM69_OOK_BR2_FD5 RFM69_CONFIG_OOK, RFM69_BITRATEMSB_2000, RFM69_BITRATELSB_2000, RFM69_FDEVMSB_5000, RFM69_FDEVLSB_5000, RFM69_RXBW_111_24_4, RFM69_CONFIG_WHITE
	RFM69_OOK_BR2_FD5.

#define	RFM69_OOK_BR2_4_FD4_8 RFM69_CONFIG_OOK, RFM69_BITRATEMSB_2400, RFM69_BITRATELSB_2400, RFM69_FDEVMSB_4800, RFM69_FDEVLSB_4800, RFM69_RXBW_111_24_4, RFM69_CONFIG_WHITE
	RFM69_OOK_BR2_4_FD4_8.

#define	RFM69_OOK_BR4_8_FD9_6 RFM69_CONFIG_OOK, RFM69_BITRATEMSB_4800, RFM69_BITRATELSB_4800, RFM69_FDEVMSB_9600, RFM69_FDEVLSB_9600, RFM69_RXBW_111_24_4, RFM69_CONFIG_WHITE
	RFM69_OOK_BR4_8_FD9_6.

#define	RFM69_OOK_BR9_6_FD19_2 RFM69_CONFIG_OOK, RFM69_BITRATEMSB_9600, RFM69_BITRATELSB_9600, RFM69_FDEVMSB_19200, RFM69_FDEVLSB_19200, RFM69_RXBW_111_24_4, RFM69_CONFIG_WHITE
	RFM69_OOK_BR9_6_FD19_2.

#define	RFM69_OOK_BR19_2_FD38_4 RFM69_CONFIG_OOK, RFM69_BITRATEMSB_19200, RFM69_BITRATELSB_19200, RFM69_FDEVMSB_38400, RFM69_FDEVLSB_38400, RFM69_RXBW_111_24_3, RFM69_CONFIG_WHITE
	RFM69_OOK_BR19_2_FD38_4.

#define	RFM69_OOK_BR38_4_FD76_8 RFM69_CONFIG_OOK, RFM69_BITRATEMSB_38400, RFM69_BITRATELSB_38400, RFM69_FDEVMSB_76800, RFM69_FDEVLSB_76800, RFM69_RXBW_111_24_2, RFM69_CONFIG_WHITE
	RFM69_OOK_BR38_4_FD76_8.

#define	RFM69_OOK_BR55_5_FD50 RFM69_CONFIG_OOK, RFM69_BITRATEMSB_55555, RFM69_BITRATELSB_55555, RFM69_FDEVMSB_50000, RFM69_FDEVLSB_50000, RFM69_RXBW_111_16_2, RFM69_CONFIG_WHITE
	RFM69_OOK_BR55_5_FD50.

#define	RFM69_OOK_BR57_6_FD120 RFM69_CONFIG_OOK, RFM69_BITRATEMSB_57600, RFM69_BITRATELSB_57600, RFM69_FDEVMSB_120000, RFM69_FDEVLSB_120000, RFM69_RXBW_111_16_1, RFM69_CONFIG_WHITE
	RFM69_OOK_BR57_6_FD120.

#define	RFM69_OOK_BR125_FD125 RFM69_CONFIG_OOK, RFM69_BITRATEMSB_125000, RFM69_BITRATELSB_125000, RFM69_FDEVMSB_125000, RFM69_FDEVLSB_125000, RFM69_RXBW_010_16_2, RFM69_CONFIG_WHITE
	RFM69_OOK_BR125_FD125.

#define	RFM69_OOK_BR250_FD250 RFM69_CONFIG_OOK, RFM69_BITRATEMSB_250000, RFM69_BITRATELSB_250000, RFM69_FDEVMSB_250000, RFM69_FDEVLSB_250000, RFM69_RXBW_111_16_0, RFM69_CONFIG_WHITE
	RFM69_OOK_BR250_FD250.

#define	MY_RFM69_MODEM_CONFIGURATION RFM69_FSK_BR55_5_FD50
	default setting, RFM69_FSK_BR55_5_FD50

#define	RFM69_HEADER_LEN sizeof(rfm69_header_t)
	Size header inside payload.

#define	RFM69_MAX_PAYLOAD_LEN (RFM69_MAX_PACKET_LEN - RFM69_HEADER_LEN)
	Max payload length.

#define	LOCAL static
	static

Typedefs
typedef uint8_t	rfm69_sequenceNumber_t
	Sequence number data type.

typedef uint8_t	rfm69_RSSI_t
	RSSI data type.

typedef int8_t	rfm69_SNR_t
	SNR data type.

typedef uint8_t	rfm69_controlFlags_t
	Control flag data type.

typedef int8_t	rfm69_powerlevel_t
	Power level in dBm.

Enumerations
enum	rfm69_radio_mode_t { RFM69_RADIO_MODE_RX = 0, RFM69_RADIO_MODE_TX = 1, RFM69_RADIO_MODE_CAD = 2, RFM69_RADIO_MODE_SLEEP = 3, RFM69_RADIO_MODE_STDBY = 4, RFM69_RADIO_MODE_SYNTH = 5, RFM69_RADIO_MODE_LISTEN = 6 }
	Radio modes. More...

Functions
LOCAL void	RFM69_handler (void)
	RFM69_handler.

LOCAL void	RFM69_clearFIFO (void)
	Clear flags and FIFO.

LOCAL bool	RFM69_channelFree (void)
	Check for channel activity. More...

LOCAL void	RFM69_interruptHandling (void)
	RFM69_interruptHandling.

LOCAL bool	RFM69_initialise (const uint32_t frequencyHz)
	Initialise the driver transport hardware and software. More...

LOCAL void	RFM69_setAddress (const uint8_t addr)
	Set the driver/node address. More...

LOCAL uint8_t	RFM69_getAddress (void)
	Get driver/node address. More...

LOCAL bool	RFM69_available (void)
	Tests whether a new message is available. More...

LOCAL uint8_t	RFM69_receive (uint8_t *buf, const uint8_t maxBufSize)
	If a valid message is received, copy it to buf and return length. 0 byte messages are permitted. More...

LOCAL bool	RFM69_sendFrame (rfm69_packet_t *packet, const bool increaseSequenceCounter=true)
	RFM69_sendFrame. More...

LOCAL bool	RFM69_send (const uint8_t recipient, uint8_t *data, const uint8_t len, const rfm69_controlFlags_t flags, const bool increaseSequenceCounter=true)
	RFM69_send. More...

LOCAL void	RFM69_setFrequency (const uint32_t frequencyHz)
	Sets the transmitter and receiver center frequency. More...

LOCAL bool	RFM69_setTxPowerLevel (rfm69_powerlevel_t newPowerLevel)
	Sets the transmitter power output level, and configures the transmitter pin. More...

LOCAL rfm69_powerlevel_t	RFM69_getTxPowerLevel (void)
	Reports the transmitter power output level in dBm. More...

LOCAL uint8_t	RFM69_getTxPowerPercent (void)
	Reports the transmitter power output level in percents. More...

LOCAL bool	RFM69_sleep (void)
	Sets the radio into low-power sleep mode. More...

LOCAL bool	RFM69_standBy (void)
	Sets the radio to standby mode. More...

LOCAL void	RFM69_powerDown (void)
	Power down radio (HW)

LOCAL void	RFM69_powerUp (void)
	Power up radio (HW)

LOCAL void	RFM69_sendACK (const uint8_t recipient, const rfm69_sequenceNumber_t sequenceNumber, const rfm69_RSSI_t RSSI)
	RFM69_sendACK. More...

LOCAL bool	RFM69_sendWithRetry (const uint8_t recipient, const void *buffer, const uint8_t bufferSize, const bool noACK)
	RFM69_sendWithRetry. More...

LOCAL bool	RFM69_setRadioMode (const rfm69_radio_mode_t newRadioMode)
	RFM69_setRadioMode. More...

LOCAL void	RFM69_interruptHandler (void)
	Low level interrupt handler.

LOCAL int16_t	RFM69_getSendingRSSI (void)
	RFM69_getSendingRSSI. More...

LOCAL int16_t	RFM69_getReceivingRSSI (void)
	RFM69_getReceivingRSSI. More...

LOCAL bool	RFM69_executeATC (const rfm69_RSSI_t currentRSSI, const rfm69_RSSI_t targetRSSI)
	RFM69_executeATC. More...

LOCAL void	RFM69_setConfiguration (void)
	RFM69_setConfiguration Set general radio register configuration TODO temp use setmodemregisters.

LOCAL bool	RFM69_isModeReady (void)
	RFM69_isModeReady. More...

LOCAL bool	RFM69_sanityCheck (void)
	RFM69_sanityCheck detect HW defect, configuration errors or interrupted SPI line. More...

LOCAL void	RFM69_encrypt (const char *key)
	RFM69_encrypt Set encryption mode. More...

LOCAL void	RFM69_setHighPowerRegs (const bool onOff)
	RFM69_setHighPowerRegs. More...

LOCAL rfm69_RSSI_t	RFM69_readRSSI (const bool forceTrigger=false)
	RFM69_readRSSI. More...

LOCAL void	RFM69_ATCmode (const bool onOff, const int16_t targetRSSI=RFM69_TARGET_RSSI_DBM)
	RFM69_ATCmode. More...

LOCAL void	RFM69_readAllRegs (void)
	RFM69_readAllRegs Read and display all RFM69 register contents. More...

Enumeration Type Documentation

◆ rfm69_radio_mode_t

enum rfm69_radio_mode_t

Radio modes.

Enumerator
RFM69_RADIO_MODE_RX	RX mode.
RFM69_RADIO_MODE_TX	TX mode.
RFM69_RADIO_MODE_CAD	CAD mode.
RFM69_RADIO_MODE_SLEEP	SLEEP mode.
RFM69_RADIO_MODE_STDBY	STDBY mode.
RFM69_RADIO_MODE_SYNTH	SYNTH mode.
RFM69_RADIO_MODE_LISTEN	LISTEN mode.

Definition at line 246 of file RFM69_new.h.

Function Documentation

◆ RFM69_ATCmode()

LOCAL void RFM69_ATCmode	(	const bool	onOff,
		const int16_t	targetRSSI = `RFM69_TARGET_RSSI_DBM`
	)

RFM69_ATCmode.

Parameters

targetRSSI	Target RSSI for transmitter (default -60)
onOff	True to enable ATC

◆ RFM69_available()

LOCAL bool RFM69_available ( void )

Tests whether a new message is available.

Returns: True if a new, complete, error-free uncollected message is available to be retreived by RFM69_receive()

◆ RFM69_channelFree()

LOCAL bool RFM69_channelFree ( void )

Check for channel activity.

Returns: True if channel activity under RFM69_CSMA_LIMIT_DBM

◆ RFM69_encrypt()

LOCAL void RFM69_encrypt ( const char * key )

RFM69_encrypt Set encryption mode.

Parameters

key	if key is null, encryption is disabled. Key has to be 16 bytes!

◆ RFM69_executeATC()

LOCAL bool RFM69_executeATC	(	const rfm69_RSSI_t	currentRSSI,
		const rfm69_RSSI_t	targetRSSI
	)

RFM69_executeATC.

Parameters

currentRSSI
targetRSSI

Returns: True if power level adjusted

◆ RFM69_getAddress()

LOCAL uint8_t RFM69_getAddress ( void )

Get driver/node address.

Returns: Node address

◆ RFM69_getReceivingRSSI()

LOCAL int16_t RFM69_getReceivingRSSI ( void )

RFM69_getReceivingRSSI.

Returns: RSSI Signal strength of last received packet

◆ RFM69_getSendingRSSI()

LOCAL int16_t RFM69_getSendingRSSI ( void )

RFM69_getSendingRSSI.

Returns: RSSI Own RSSI as measured at the receiving node of last sent packet (if ACK & ATC enabled)

◆ RFM69_getTxPowerLevel()

LOCAL rfm69_powerlevel_t RFM69_getTxPowerLevel ( void )

Reports the transmitter power output level in dBm.

Returns: power level

◆ RFM69_getTxPowerPercent()

LOCAL uint8_t RFM69_getTxPowerPercent ( void )

Reports the transmitter power output level in percents.

Returns: power level

◆ RFM69_initialise()

LOCAL bool RFM69_initialise ( const uint32_t frequencyHz )

Initialise the driver transport hardware and software.

Parameters

frequencyHz Frequency in Hz

Returns: True if initialisation succeeded

◆ RFM69_isModeReady()

LOCAL bool RFM69_isModeReady ( void )

RFM69_isModeReady.

Returns: True if Mode Ready is ok, false is timeout

◆ RFM69_readAllRegs()

LOCAL void RFM69_readAllRegs ( void )

RFM69_readAllRegs Read and display all RFM69 register contents.

Note: define RFM69_REGISTER_DETAIL for register content decoding.

◆ RFM69_readRSSI()

LOCAL rfm69_RSSI_t RFM69_readRSSI ( const bool forceTrigger = false )

RFM69_readRSSI.

Parameters

forceTrigger

Returns: RSSI (internal format)

◆ RFM69_receive()

LOCAL uint8_t RFM69_receive	(	uint8_t *	buf,
		const uint8_t	maxBufSize
	)

If a valid message is received, copy it to buf and return length. 0 byte messages are permitted.

Parameters

buf	Location to copy the received message
maxBufSize	Max buffer size

Returns: Number of bytes

◆ RFM69_sanityCheck()

LOCAL bool RFM69_sanityCheck ( void )

RFM69_sanityCheck detect HW defect, configuration errors or interrupted SPI line.

Returns: True if radio sanity check passed

◆ RFM69_send()

LOCAL bool RFM69_send	(	const uint8_t	recipient,
		uint8_t *	data,
		const uint8_t	len,
		const rfm69_controlFlags_t	flags,
		const bool	increaseSequenceCounter = `true`
	)

RFM69_send.

Parameters

recipient
data
len
flags
increaseSequenceCounter

Returns: True if frame sent

◆ RFM69_sendACK()

LOCAL void RFM69_sendACK	(	const uint8_t	recipient,
		const rfm69_sequenceNumber_t	sequenceNumber,
		const rfm69_RSSI_t	RSSI
	)

RFM69_sendACK.

Parameters

recipient
sequenceNumber
RSSI	(rfm95_RSSI_t)

◆ RFM69_sendFrame()

LOCAL bool RFM69_sendFrame	(	rfm69_packet_t *	packet,
		const bool	increaseSequenceCounter = `true`
	)

RFM69_sendFrame.

Parameters

packet
increaseSequenceCounter

Returns: True if packet sent

◆ RFM69_sendWithRetry()

LOCAL bool RFM69_sendWithRetry	(	const uint8_t	recipient,
		const void *	buffer,
		const uint8_t	bufferSize,
		const bool	noACK
	)

RFM69_sendWithRetry.

Parameters

recipient
buffer
bufferSize
noACK

Returns: True if packet successfully sent

◆ RFM69_setAddress()

LOCAL void RFM69_setAddress ( const uint8_t addr )

Set the driver/node address.

Parameters

addr

◆ RFM69_setFrequency()

LOCAL void RFM69_setFrequency ( const uint32_t frequencyHz )

Sets the transmitter and receiver center frequency.

Parameters

frequencyHz Frequency in Hz

◆ RFM69_setHighPowerRegs()

LOCAL void RFM69_setHighPowerRegs ( const bool onOff )

RFM69_setHighPowerRegs.

Parameters

onOff

◆ RFM69_setRadioMode()

LOCAL bool RFM69_setRadioMode ( const rfm69_radio_mode_t newRadioMode )

RFM69_setRadioMode.

Parameters

newRadioMode

Returns: True if mode changed

◆ RFM69_setTxPowerLevel()

LOCAL bool RFM69_setTxPowerLevel ( rfm69_powerlevel_t newPowerLevel )

Sets the transmitter power output level, and configures the transmitter pin.

Parameters

newPowerLevel Transmitter power level in dBm (-18 to +20dBm)

Returns: True power level adjusted

◆ RFM69_sleep()

LOCAL bool RFM69_sleep ( void )

Sets the radio into low-power sleep mode.

Returns: true if sleep mode was successfully entered

◆ RFM69_standBy()

LOCAL bool RFM69_standBy ( void )

Sets the radio to standby mode.

Returns: true if standby mode was successfully entered

Detailed Description

Classes

Macros

Typedefs

Enumerations

Functions

Enumeration Type Documentation

◆ rfm69_radio_mode_t

Function Documentation

◆ RFM69_ATCmode()

◆ RFM69_available()

◆ RFM69_channelFree()

◆ RFM69_encrypt()

◆ RFM69_executeATC()

◆ RFM69_getAddress()

◆ RFM69_getReceivingRSSI()

◆ RFM69_getSendingRSSI()

◆ RFM69_getTxPowerLevel()

◆ RFM69_getTxPowerPercent()

◆ RFM69_initialise()

◆ RFM69_isModeReady()

◆ RFM69_readAllRegs()

◆ RFM69_readRSSI()

◆ RFM69_receive()

◆ RFM69_sanityCheck()

◆ RFM69_send()

◆ RFM69_sendACK()

◆ RFM69_sendFrame()

◆ RFM69_sendWithRetry()

◆ RFM69_setAddress()

◆ RFM69_setFrequency()

◆ RFM69_setHighPowerRegs()

◆ RFM69_setRadioMode()

◆ RFM69_setTxPowerLevel()

◆ RFM69_sleep()

◆ RFM69_standBy()
